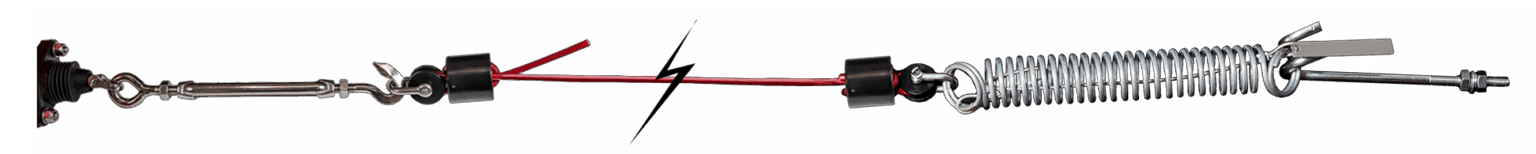

Lanyard Pull Wire Rope – Stainless Steel

Stainless Steel Pull Wire Rope

Stainless Steel Pull Wire Rope is a UV Stable Red Polyurethane coated 304 Stainless Steel 5mm OD 6 x 19 construction wire rope, designed and manufactured for the purpose of a lanyard emergency stop pull wire system.

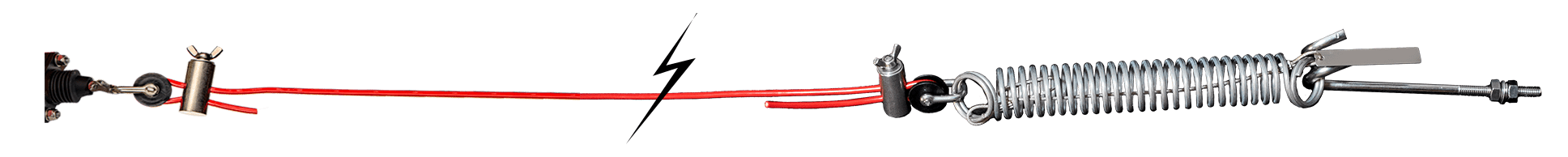

Lanyard Pull Wire Rope – Vectron Fibre Rope

Vectron Fibre Rope

Vectran is a UV Stable Red Polyurethane coated LCP (Liquid Crystal Polymer)  5mm OD multifilament melt spun yarn rope, designed and manufactured for the purpose of a lanyard emergency stop pull wire system.

SAFE – T – GUIDE – Rope Support

It is made from UV Stabilised Polypropylene, non corrosive material mounted on a M10 x 200mm long
Stainless Steel Support Rod. P/N STG-200SS.

The STG-200 has a 50mm long rope guide surface and a 24.5mm diameter tunnel with belled ends.

The STG-200 is suitable for pull wires from standard 3mm PVC coated wire rope, through to larger communication cables.

Available in 350mm Length – STG-350SS

SAFE – T – GUIDE – Rope Support – Chrome

The Nm Force to activate the pull wire in any direction is reduced, due to the STG-200’s long, smooth,
hard, low friction surface.

The pull wires weight being spread over a long surface area and the natural tentioned hanging position of the pull wire entering the belled end tunnel, extends the pull wire life.

Available in 350mm Length – STG-350SS

EMERGENCY STOP PULL WIRE SIGN

The is a highly reflective emergency stop sign for conveyor lanyard switches and pull wires.

It is manufactured from a high grade 3M reflective product which a has a 10 year guarantee and is mounted to a specially designed mounting bracket which is angled to give the operator a view of the sign at all angles.

The mounting bracket is made from 1.2mm 304 Stainless Steel.

With two 6mm mounting holes the bracket is simple and easy to install on existing or new installations.

Safe-T-Curve

The Safe-T-Curve is a product that is designed to be used on any pull wire system that needs the wire/rope to bend around any type of corner with out becoming stuck, snagged or pulls out like a standard pulley may.

A standard pulley is designed mainly for yachts and straight pull situations where the wire/rope is to be pulled around the wheel not on an angle to the wheels groove.

When they are pulled at an angle the wire/rope can become dislodged or stuck in the housing as they aren’t designed for that type of application.

The Safe-T-Curve  is designed specifically for this type of application, as the roller tube acts as the pulley and the guides keep the wire/rope contained.

When the wire/rope is pulled in a direction that is not in line with the pulley roller the guides keep the wire/rope encapsulated so the wire/rope can’t become stuck or dislodged.

The long pulley tube stop the wire/rope from becoming stuck or dislodged even if the wire/rope becomes slack.

The mounting system is designed so that it is moveable and can mounted to any angled corner or bend, so keeping the wire/rope in the direction that it is intended to go.

Safe T Kit

Lanyard-switch-kit

Safe T Kit

With you Pull Wire Lanyard Switches you need a kit to complete the installation. Everything included in the kit is what you need.

The kit includes:

  • 2 Compensation Springs
  • 2 Turnbuckles
  • 2 Pigtails
  • 2 D Shackles
  • 4 Thimbles
  • 8 Rope Grips

Compensation Spring

Compensation Spring is designed to be used with SAFE-T-PULL Lanyard Switches only

STP-E60 Compensation Spring

The STP-E60 is the replacement of the STP-H60 compensation spring.

The STP-E60 reduces spring friction and material build up; As a result, the emergency stop system is more reliable with less maintenance needed.
